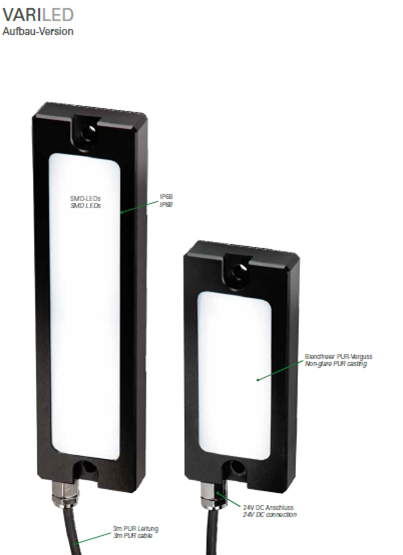

Flat, durable and IP68-rated - these are the features of the new VARILED industrial lighting series. The mounting version for initial installation and retrofitting of machines, systems and workstations is protected against external influences due to a subdued casting model and features the IP68 degree of protec- tion. The power connection is carried out directly via 24V DC. The VARILED provides for uniform and low-glare lighting thanks to the wide beam angle of 120° in conjunction with the subdued casting model.

Robust construction

⦿ Protection type IP 68, protection class III

⦿ Subdued PUR casting

⦿ Aluminium body material, anodized in black, heat dissipation through the main body, no burn hazard

Economic viability

⦿ Exceptionally energy efficient

⦿ Service life >60,000 operating hours (L70)

⦿ Switching circuits do not affect the life span

⦿ No maintenance periods

Optimal illumination

⦿ 0.3W SMD LEDs, efficiency >120 lumen/Watt

⦿ Daylight white (5.200K - 5.700K)

⦿ Ra >85

⦿ 120° beam angle

⦿ Dimming via external module possible

Features

⦿ Lamp is bolted to housing / machine / T-slot nut / magnets using M5 screws

⦿ Optional magnetic holding set available for even simpler retrofitting

⦿ 7 housing lengths/ratings available

⦿ 24V DC connection, machine voltage, M12 sensor connector
